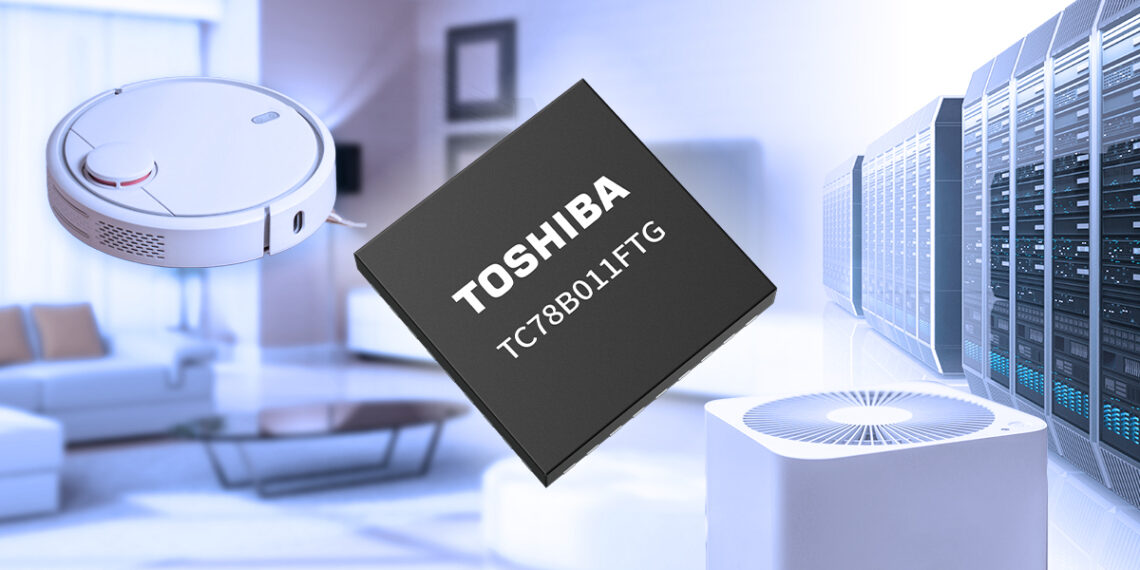

Toshiba Electronic Devices & Storage Corporation launches a three-phase brushless DC motor control pre-driver IC, “TC78B011FTG,” and has started volume shipments. The product is for high-speed motors, including those used in server fans and blowers, and in the suction motors of cordless and robot vacuum cleaners.
TC78B011FTG adopts a sine-wave drive method that does not use Hall sensor control. This helps to reduce vibration and noise. In addition, a built-in closed loop speed control function allows a detailed speed profile to be programmed into the IC’s non-volatile memory (NVM), securing suppression of fluctuations in rotation speeds due to power supply voltage or load fluctuations without any need for an external MCU.
Toshiba also mass produces TC78B009FTG, which adopts a rectangular-wave drive method that does not use Hall sensor control, and users can select the appropriate product for their motor drive method.
Applications
– Fans for servers
– Cordless vacuum cleaner suction motors
– Robot vacuum cleaner suction motors
– Pumps
– Blowers, etc.
Features
– Hall sensorless
– Sine-wave drive
– Closed loop speed control
Main Specifications
| Part number | TC78B011FTG |
| Power supply voltage
(operating range) |
5.5 to 27V |
| Driving method | Sine-wave drive |
| Features | Hall sensorless |
| Selectable closed loop or open loop speed control | |
| Standby function | |
| FET gate current configuration for slew rate control | |
| Selectable forward rotation or reverse rotation | |
| Supports speed control by PWM duty signal, analog voltage signal, and I2C | |
| Supports various setting with I2C interface | |
| Package | P-WQFN36-0505-0.50-001 (5mm×5mm×0.8mm) |
